Automatic Backwash Control Valve for Water Filters
Automatic ball valve controller for commercial and industrial water filter and softener systems. Designed for DN65–DN200 valve applications with a digital interface, wide-range power input and project-based technical support.
- Wide Valve Compatibility Designed for DN65–DN200 motorized ball valves used in water filtration and softening systems.
- Universal Power Input AC 100–240V, 50–60Hz input supports installation in different international markets.
- Clear Digital Operation The digital interface simplifies operating status checks and scheduled control settings.
- System Integration Support Suitable for distributors, system integrators, OEM projects and replacement applications.
For bulk orders and OEM enquiries: +86 159 3384 5598. Please send your valve model, valve size, quantity and destination country.

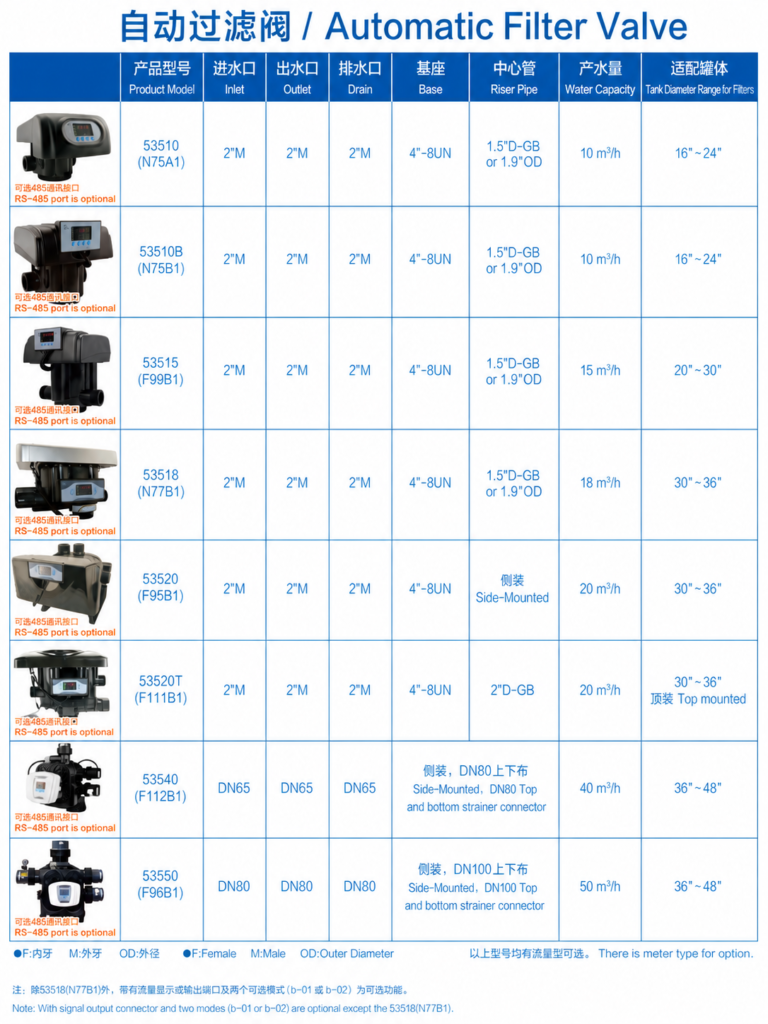

Product Introduction
Review the controller description and confirmed technical data before selecting it for a filtration, softening or industrial pretreatment project.

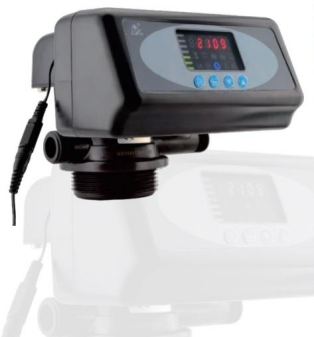

Automatic Water Filter Control Valve
This automatic water filter control valve manages service and backwash cycles in compatible residential and commercial media filtration systems.
Structure Features
- Indication of long time power off,datasavedafter poweroff (saved for three days).
- No hard water bypassin risingcycle.
- With signal output connector andtwo modes(b-01orb-02)are optional.
- Can setrinsing frequency F-00,realizing one time serviceandseveral times of backwashand fast rinse.
- With remotehandlingconnector.
- With interlock connector whichcan realize servicesimultaneously and rinse one by one.
- Start rising by daysorhours.

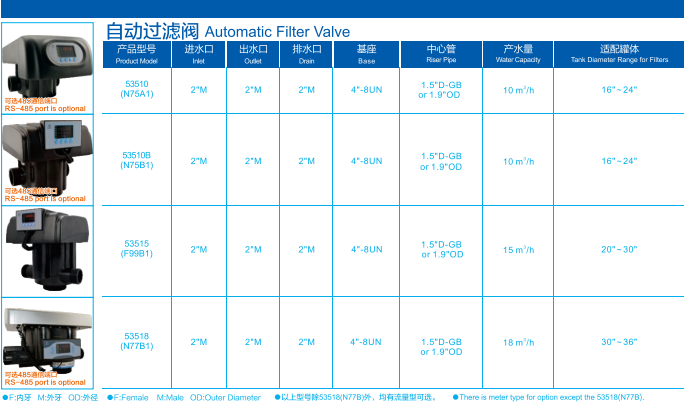

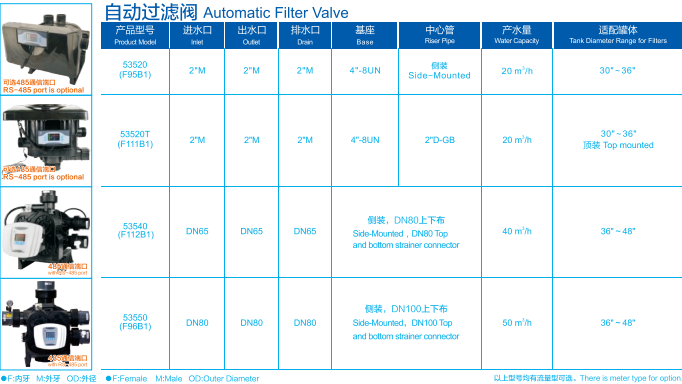

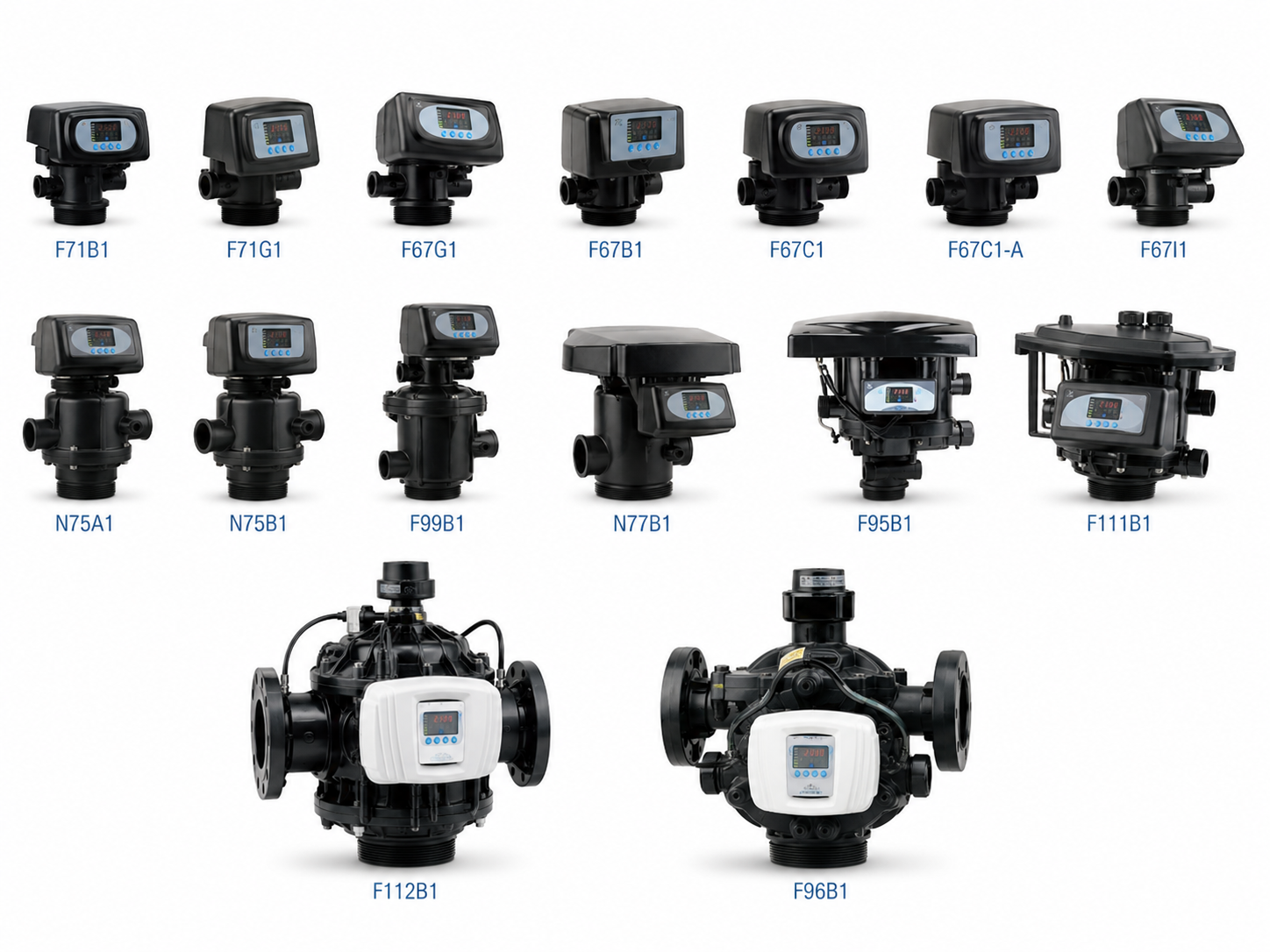

- N77/F95/F111 have two valve cores,one is forcontrollinginlet water,the other is outlet water.
- Time type or metertypeis for optional
- N77/F95withRS-485 port are optional
Applications

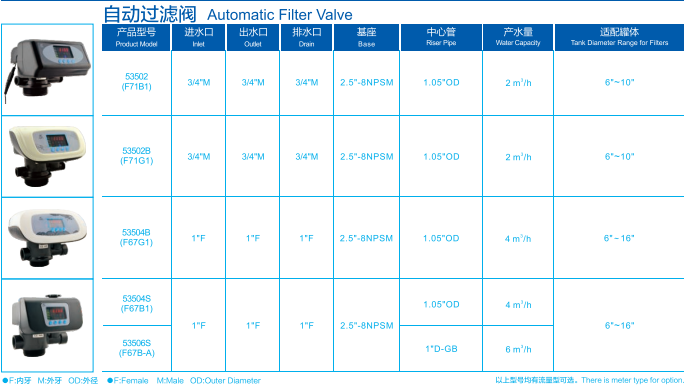

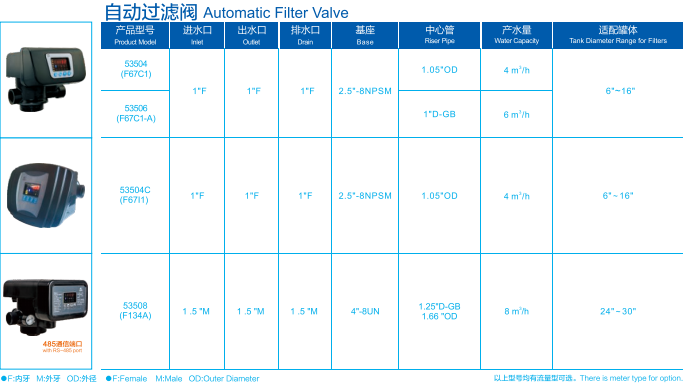

- Residential FilterSystem(F71/F67).
- A/C filter sand fiter system for RO pretreatment system.
| Model | 46030 (F109) |
|---|---|
| Compatible Valve Size | DN65–DN200 |
| Power Input | AC 100–240V, 50–60Hz |
| Power Output | DC 24V, 1.5A |
| Operating Temperature | 5–50°C |
| Display | Digital Display |
| Control Mode | Automatic Time-Based Control |
| Warranty | 1 Year |
Where This Controller Is Used
Suitable applications depend on the valve actuator, wiring and programmed operating sequence.

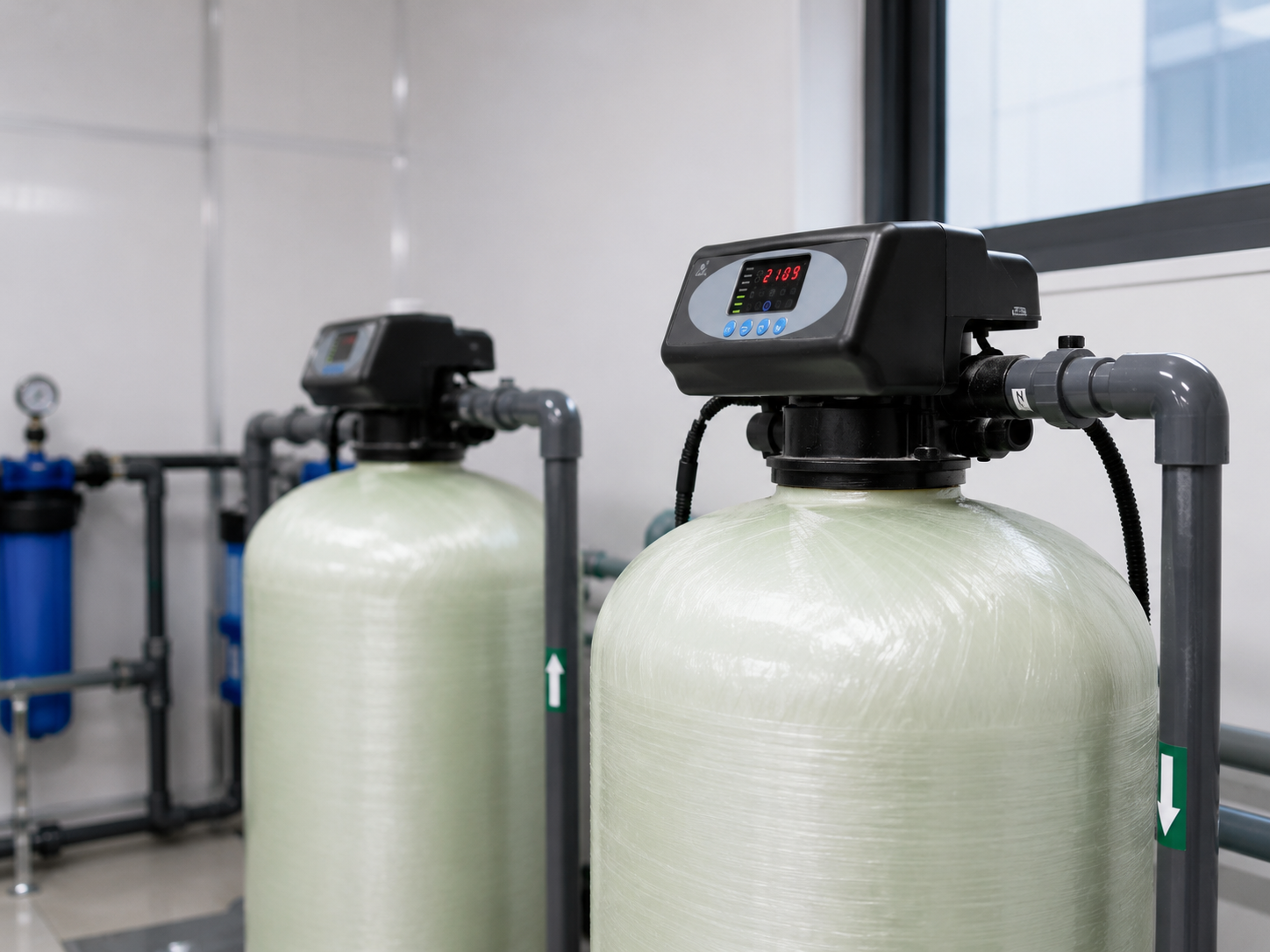

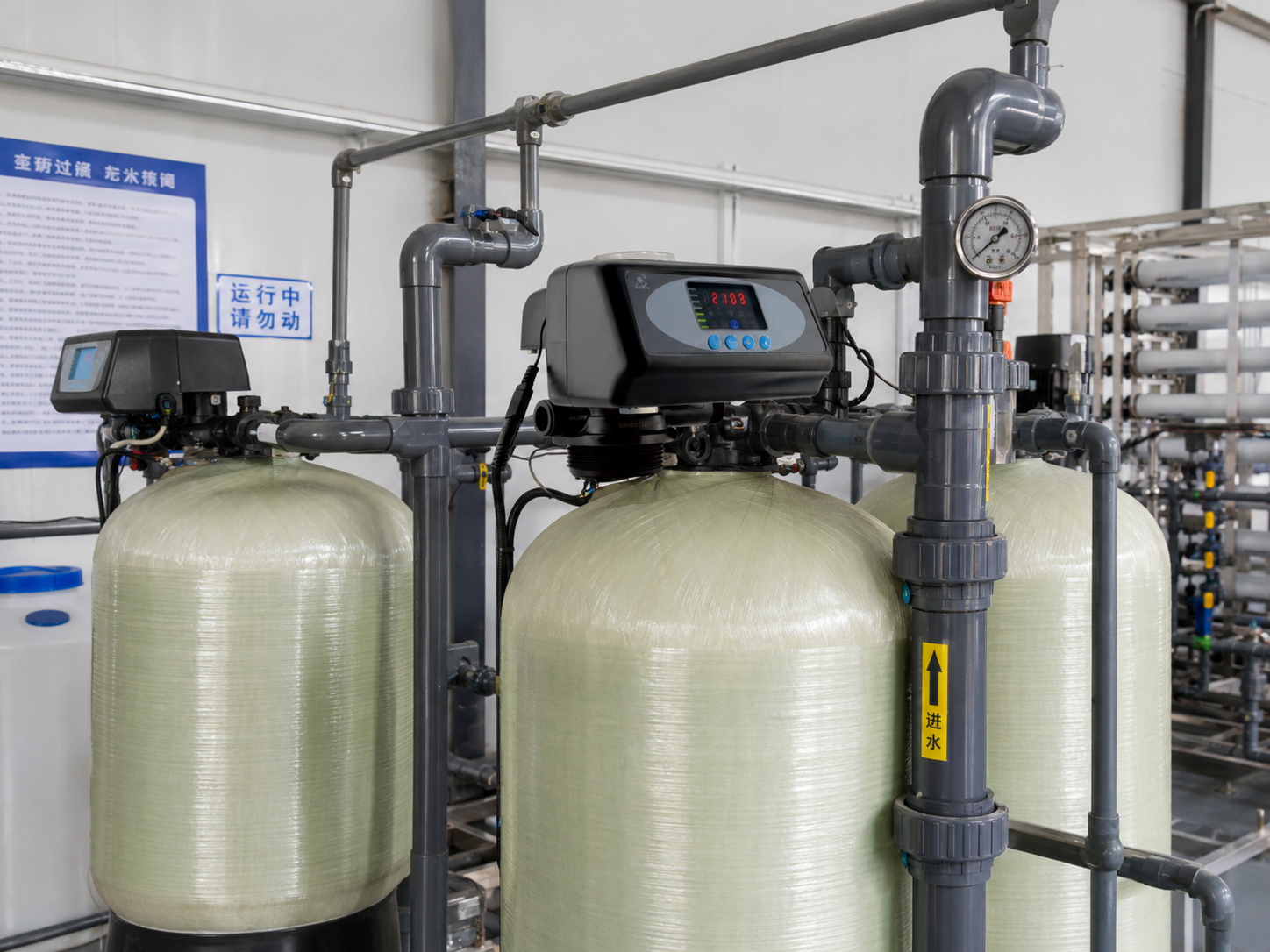

Water Filtration Systems
Automatic control for backwash and service cycles in commercial filtration systems.
Water Softener Systems
Scheduled valve operation for resin regeneration and normal service.

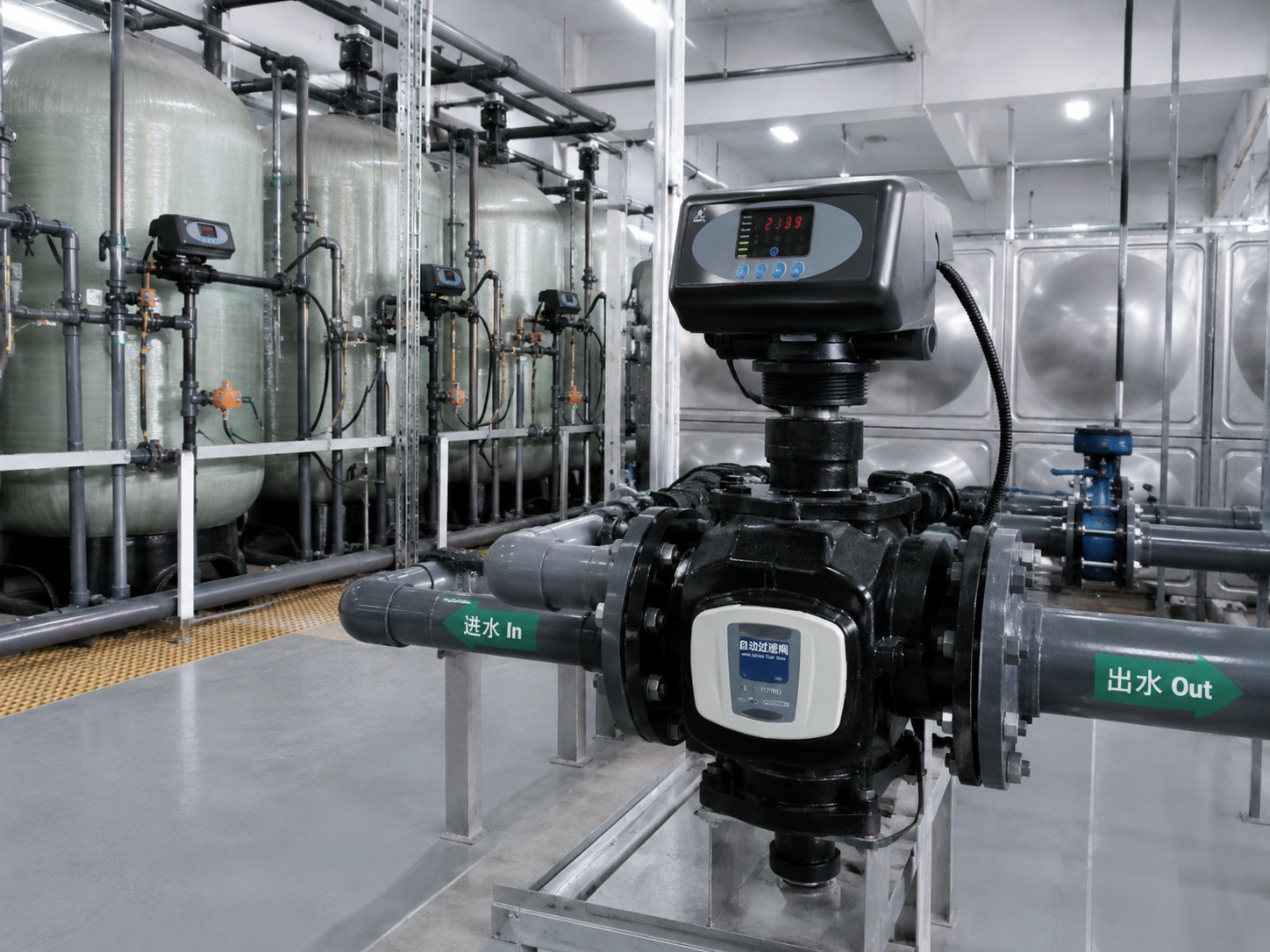

Industrial Pretreatment
Valve control for pretreatment lines before RO and other purification processes.
OEM Skid Integration
A practical controller option for customized equipment and packaged water systems.
Installation & Ordering Information
Preparing the following information helps our technical team confirm the correct configuration quickly.
Before Installation
- Verify the local input voltage and electrical safety requirements.
- Confirm actuator voltage, wiring terminals and rotation direction.
- Check the ball valve size, torque requirement and connection standard.
- Install in a dry, ventilated position within the stated temperature range.
- Commission the controller with the valve before connecting it to the full process.
Send With Your Enquiry
- Valve model and clear photos of the valve and actuator label.
- Nominal valve size and quantity required.
- Input voltage, destination country and plug requirements.
- Required filtration, backwash or regeneration sequence.
- Project delivery schedule and OEM branding requirements, if any.
Frequently Asked Questions
How do I choose the correct model for my application?
Can the product specifications or appearance be customized?
What technical documents can you provide?
What is the minimum order quantity?
How long is the production and delivery time?
What information should I provide when requesting a quotation?
Request a Technical Quote
Send your valve information and project requirements. Our sales and technical team will review the details and reply with a suitable configuration.
- Valve compatibility confirmation
- Technical specification support
- Quantity and export quotation
- OEM project discussion
Need Help Confirming Compatibility?
Send us the valve model, size, actuator voltage, quantity and destination country. We will help check whether this controller fits your water treatment project.
