Automatic Water Softener Control Valve
Automatic ball valve controller for commercial and industrial water filter and softener systems. Designed for DN65–DN200 valve applications with a digital interface, wide-range power input and project-based technical support.
- Wide Valve Compatibility Designed for DN65–DN200 motorized ball valves used in water filtration and softening systems.
- Universal Power Input AC 100–240V, 50–60Hz input supports installation in different international markets.
- Clear Digital Operation The digital interface simplifies operating status checks and scheduled control settings.
- System Integration Support Suitable for distributors, system integrators, OEM projects and replacement applications.
For bulk orders and OEM enquiries: +86 159 3384 5598. Please send your valve model, valve size, quantity and destination country.
Product Introduction
Review the controller description and confirmed technical data before selecting it for a filtration, softening or industrial pretreatment project.
Automatic Water Softener Control Valve
This automatic water softener control valve manages compatible service and regeneration cycles for residential and commercial ion-exchange softening systems.

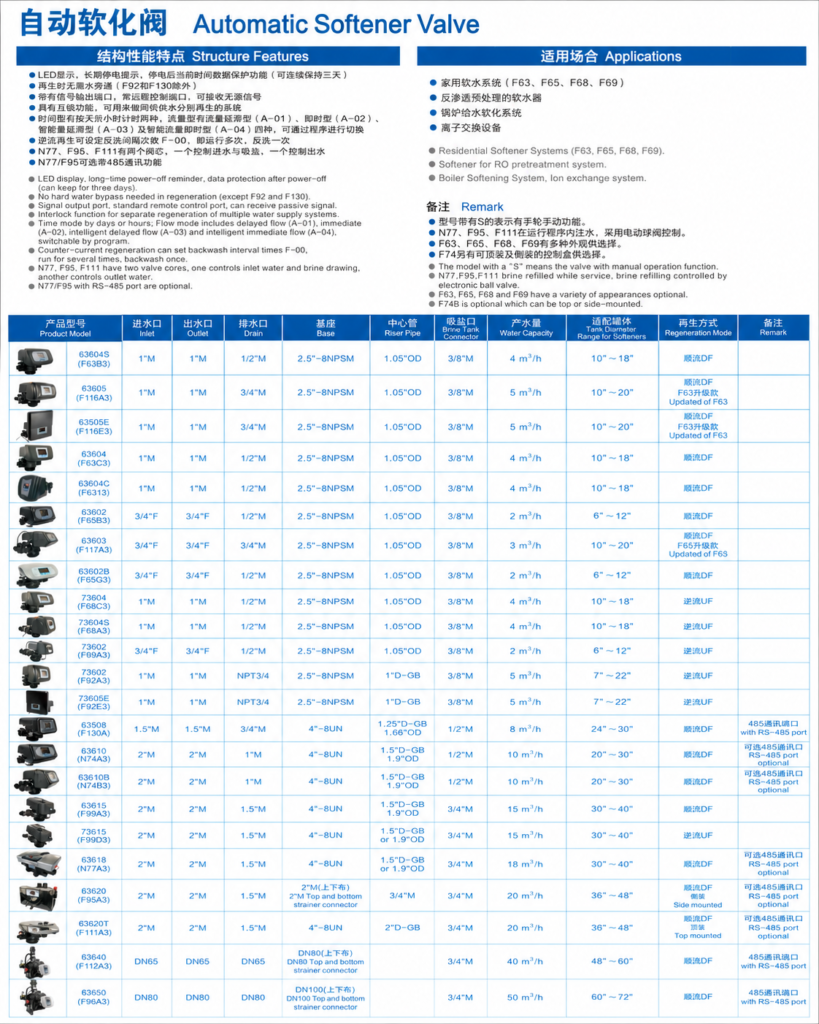

Structure Features
- Indication of long time power off,data savedafterpower off(saved for three days).
- No hard water by pass in regeneration cycle(exceptF92and F130).
- With signal output connector,remote handling connector which can receive passivesignal.
- With interlock ccnnector which can realize service simultaneouslyandregeneration one by one.
- N77,F95,F111,F99 adopt ball valve for brine drawing andrefill.
- Time clock regeneration option:by days or by hours;Meter valve regenerationoption:
Meter Delayed(A-01),Meter Immediate(A-02),Intelligent Meter Delayed(A-03), Intelligent Meter Immediate(A-04)
- Up-flow control valve can set interval backwashtimesF-00,which can realize several times service and one time backwash.
- N77,F95,F111 have two valve cores,one is forcontrollinginlet water and brine drawing, another is for outlet water.
- N77/F95 with RS-485 port are optional.
Applications
- ResidentialSoftenerSystems(F63,F65,F68,F69).
- Softener for RO pretreatmentSystem.
- Boiler Softening System,lon exchange system.
- The model with a”S”means the valve with manual operation function.
- N77,F95,F111 brine refilled while service,brine refilling controlled by electronic ballvalve.
- F63,F65,F68 and F69 have a variety ofappearancesoptional.
- N74B is optional whichcan betop or side-mounted.
| Model | 46030 (F109) |
|---|---|
| Compatible Valve Size | DN65–DN200 |
| Power Input | AC 100–240V, 50–60Hz |
| Power Output | DC 24V, 1.5A |
| Operating Temperature | 5–50°C |
| Display | Digital Display |
| Control Mode | Automatic Time-Based Control |
| Warranty | 1 Year |
Where This Controller Is Used
Suitable applications depend on the valve actuator, wiring and programmed operating sequence.
Water Filtration Systems
Automatic control for backwash and service cycles in commercial filtration systems.

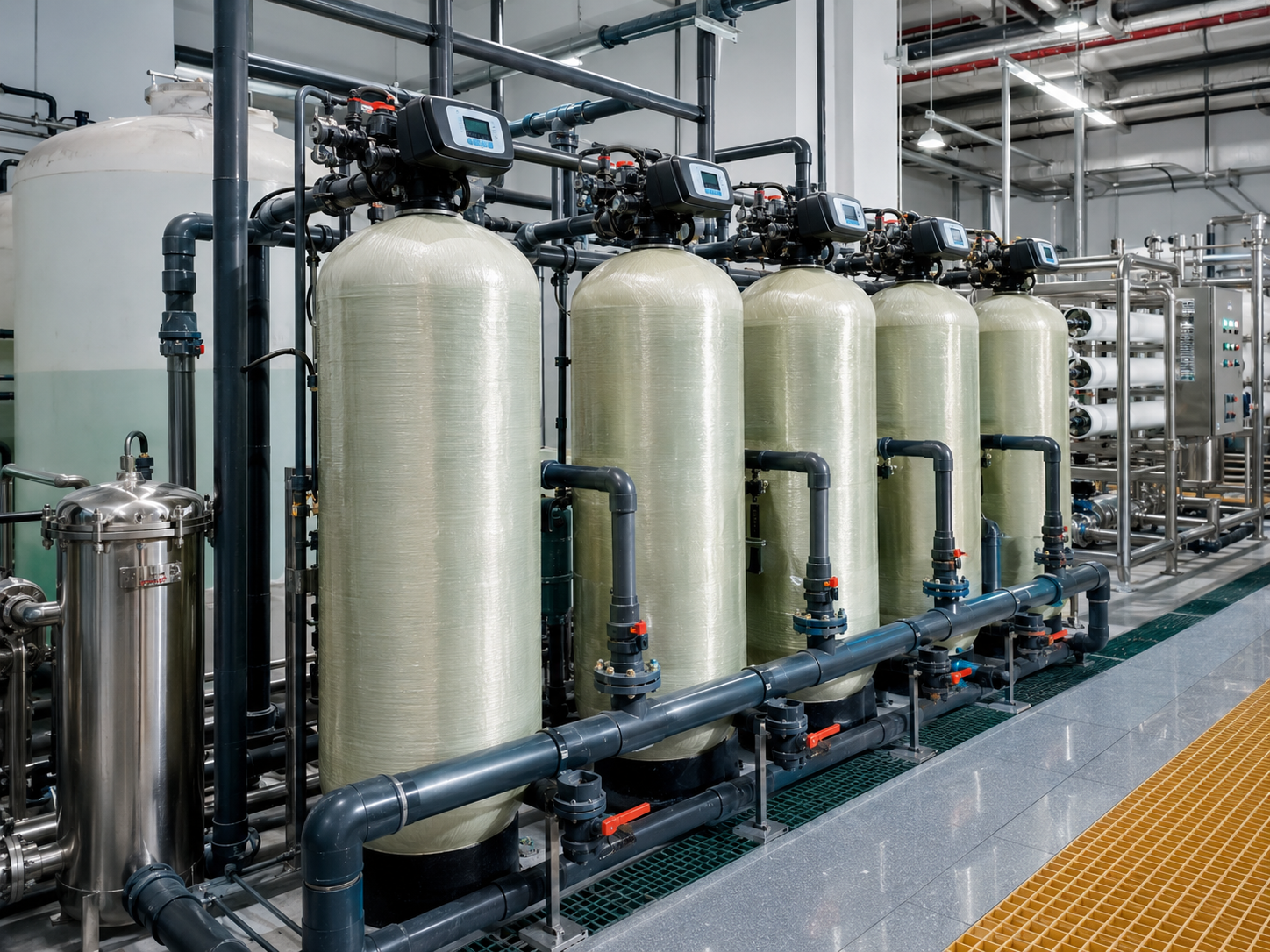

Water Softener Systems
Scheduled valve operation for resin regeneration and normal service.
Industrial Pretreatment
Valve control for pretreatment lines before RO and other purification processes.
OEM Skid Integration
A practical controller option for customized equipment and packaged water systems.
Installation & Ordering Information
Preparing the following information helps our technical team confirm the correct configuration quickly.
Before Installation
- Verify the local input voltage and electrical safety requirements.
- Confirm actuator voltage, wiring terminals and rotation direction.
- Check the ball valve size, torque requirement and connection standard.
- Install in a dry, ventilated position within the stated temperature range.
- Commission the controller with the valve before connecting it to the full process.
Send With Your Enquiry
- Valve model and clear photos of the valve and actuator label.
- Nominal valve size and quantity required.
- Input voltage, destination country and plug requirements.
- Required filtration, backwash or regeneration sequence.
- Project delivery schedule and OEM branding requirements, if any.
