Product Introduction

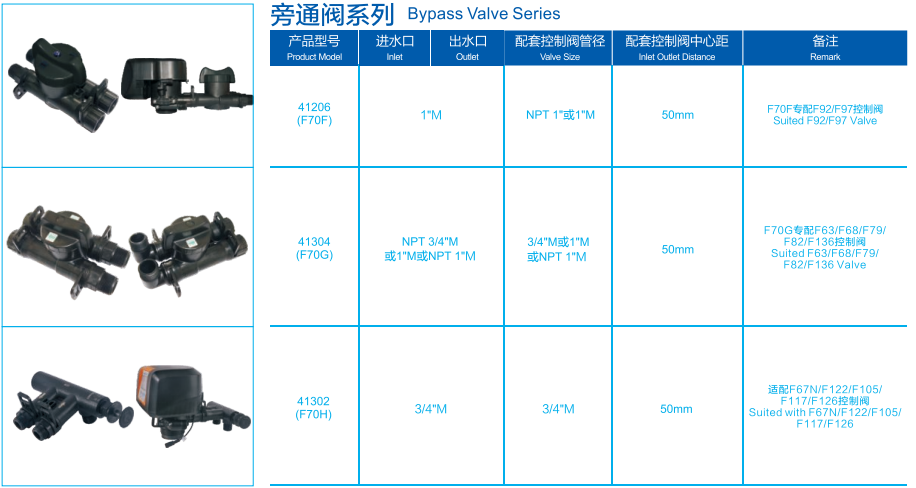

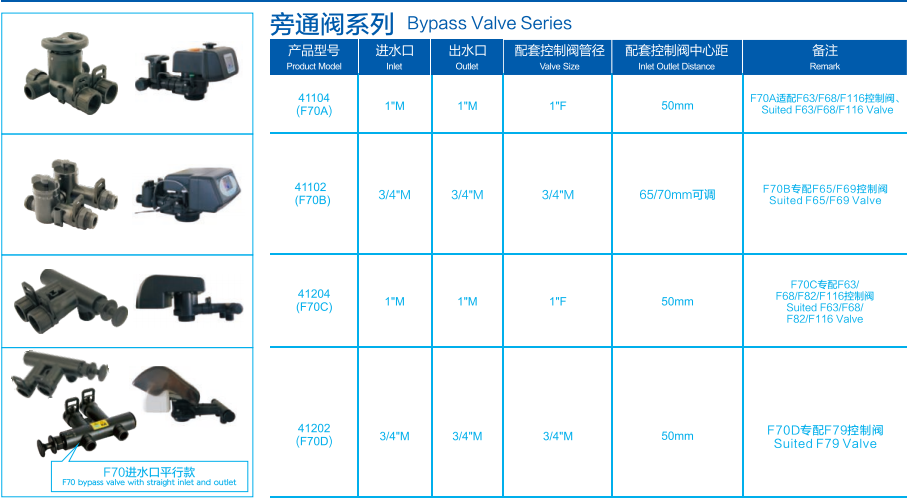

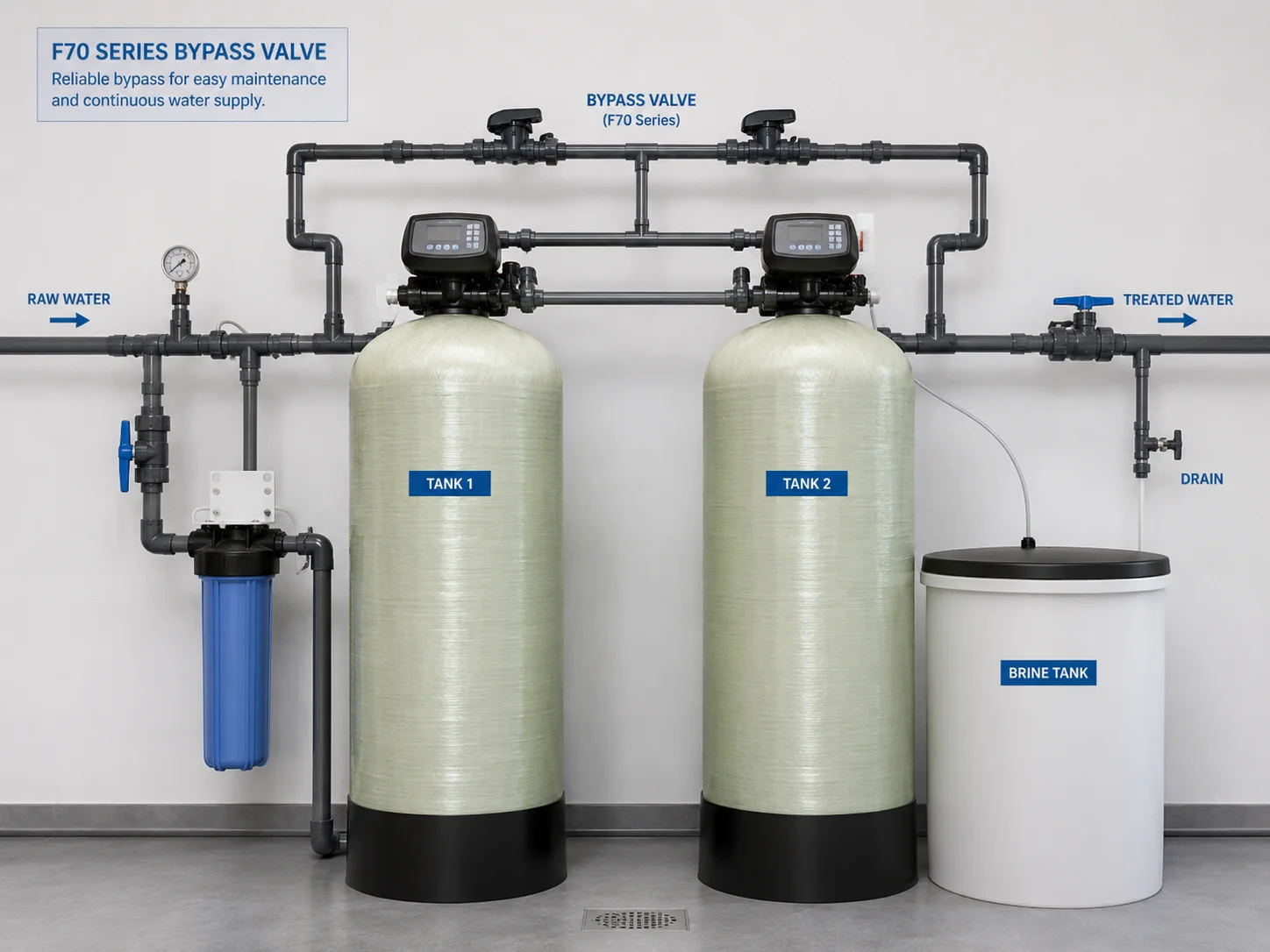

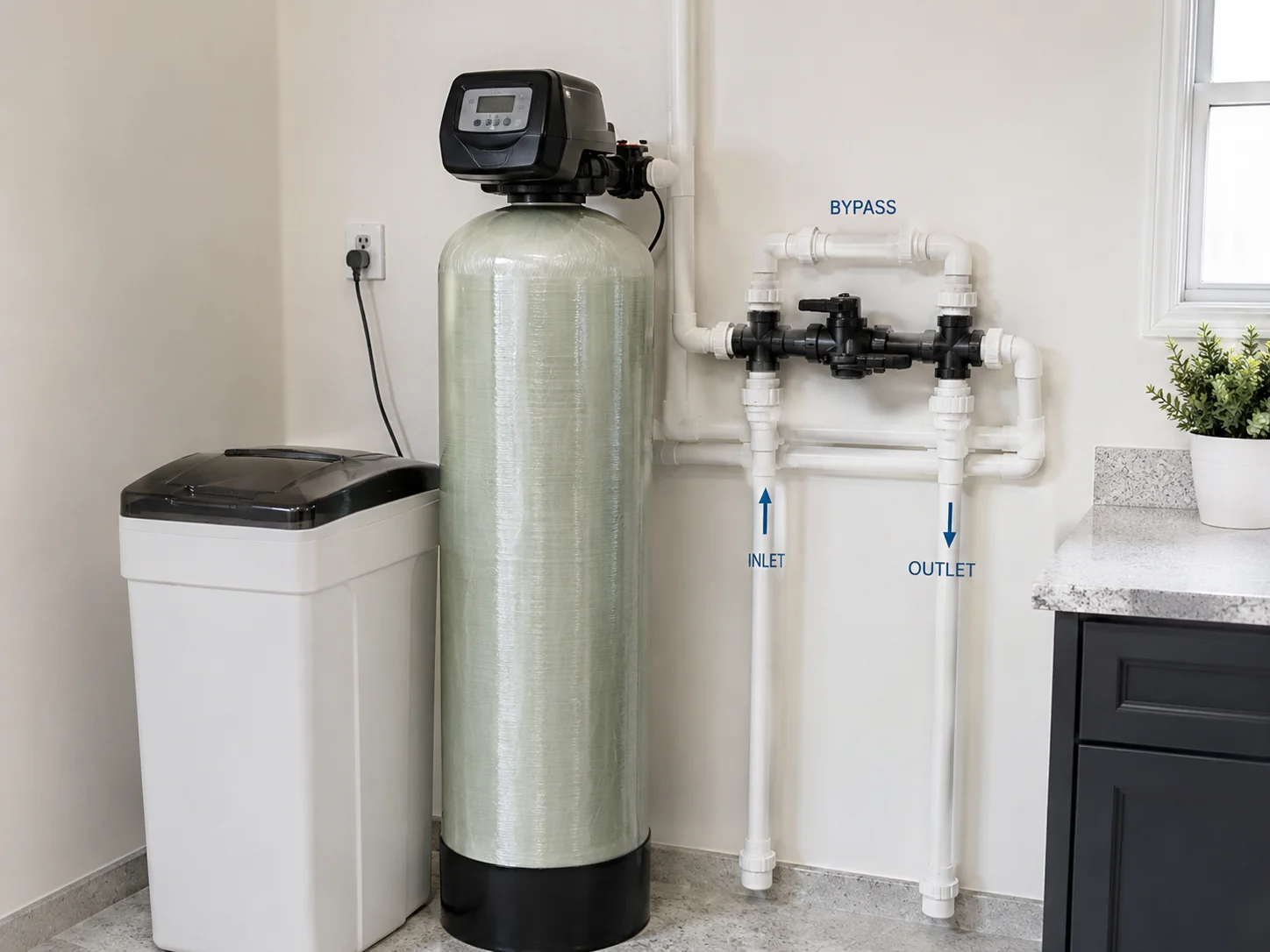

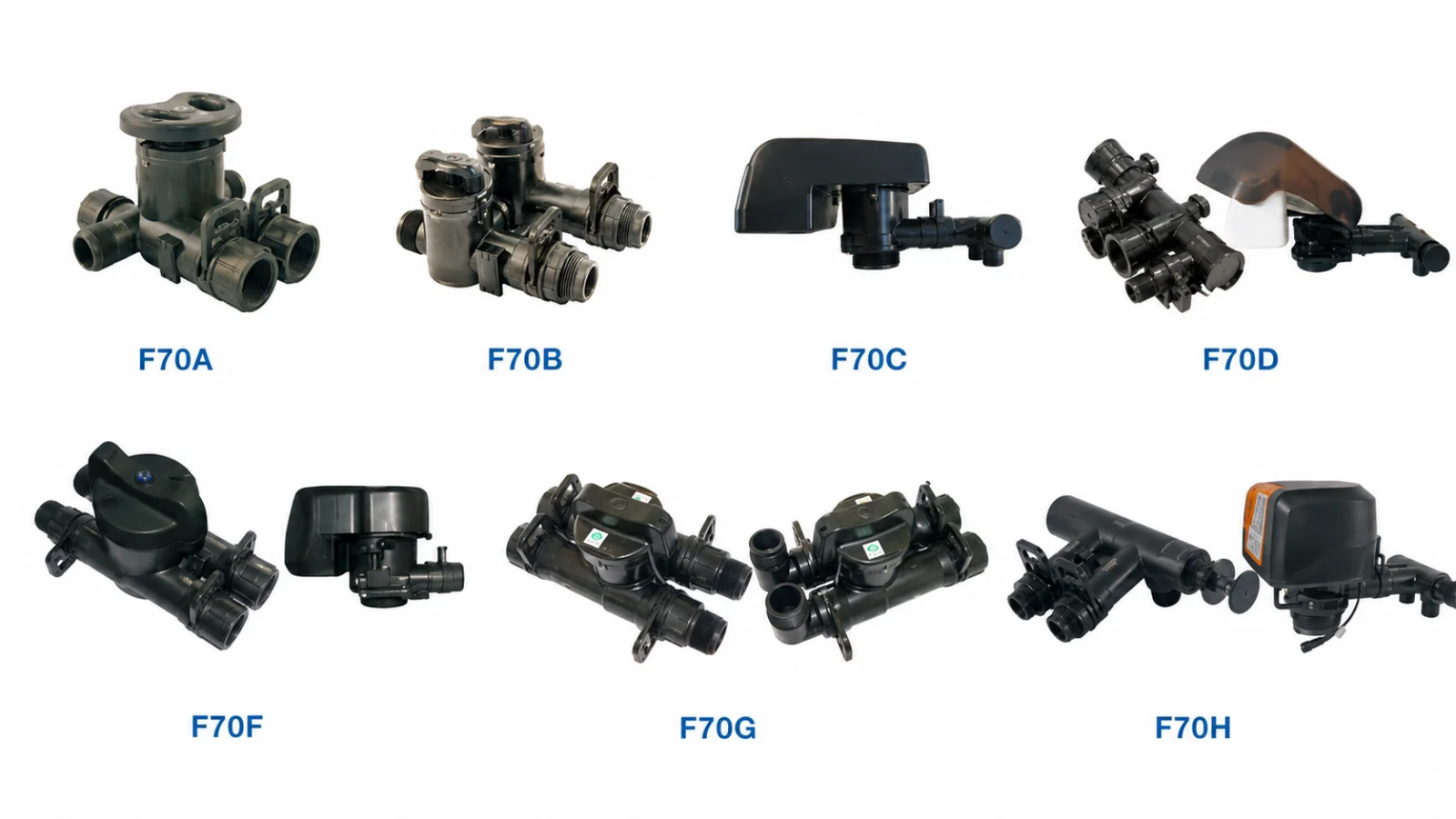

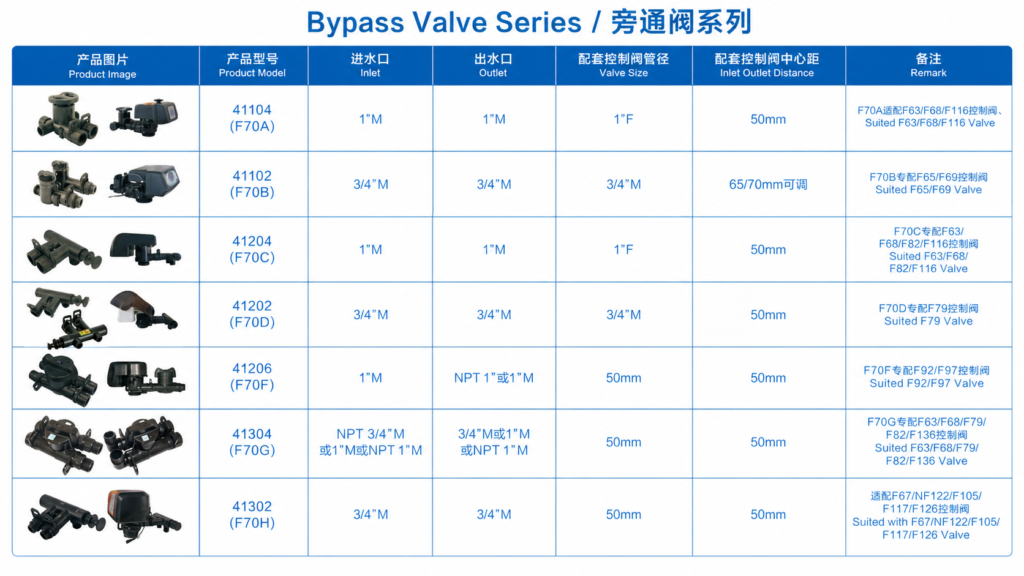

Bypass Valve Series

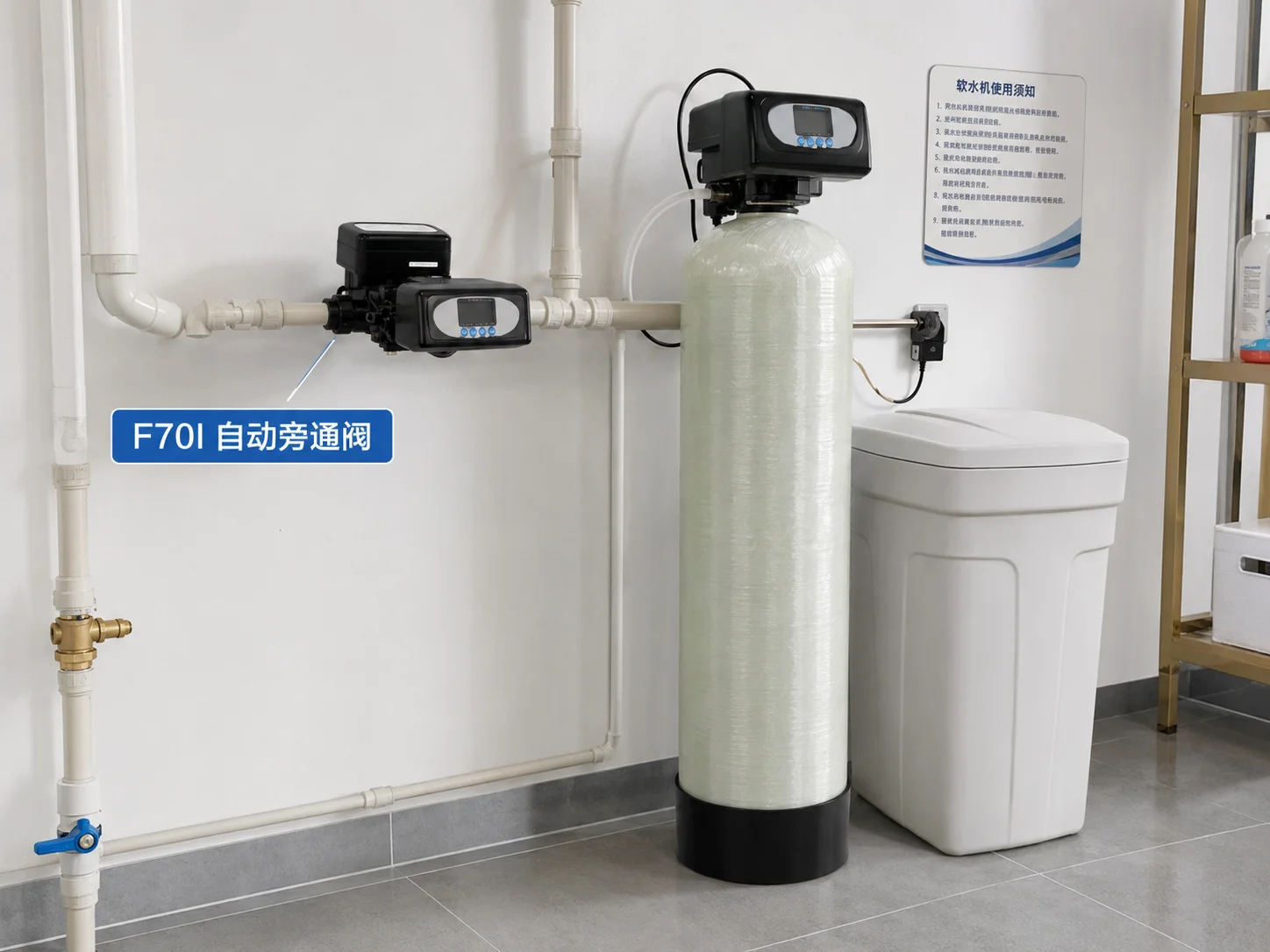

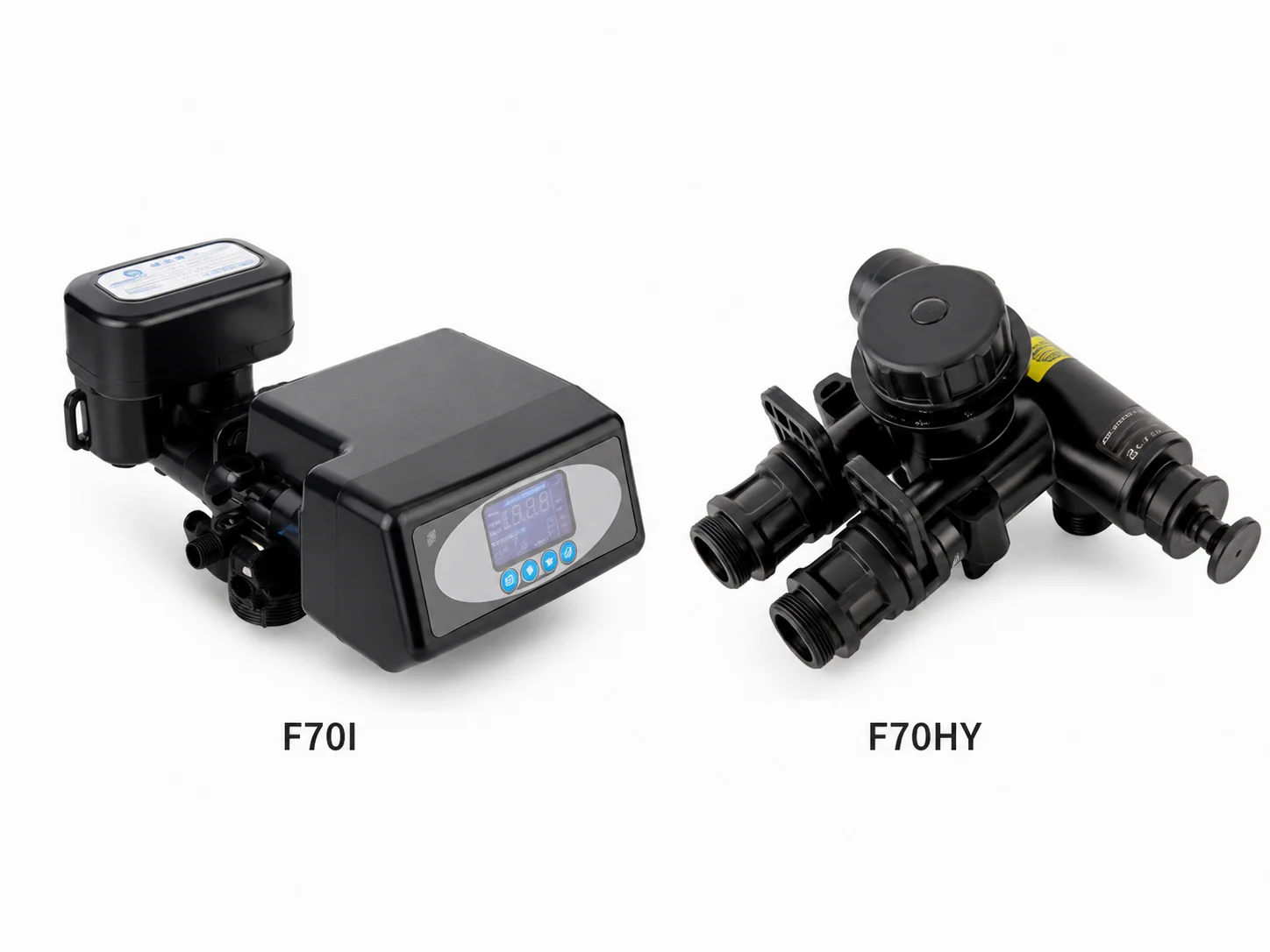

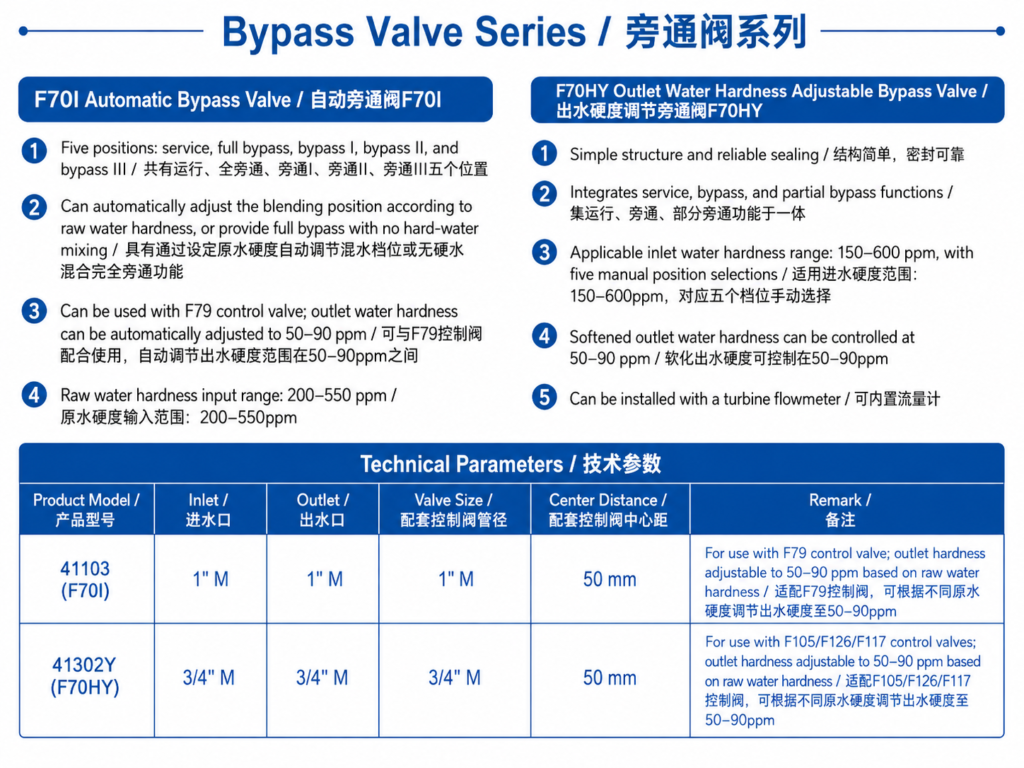

F70l automatic bypass valve
- Five positions:service(no bypass),Iposition intelligentbypass,Ilposition intelligent bypass,IIlposition
intelligent bypass and fully bypass.
- Setting raw water hardness through controlvalve
(F79)it will enter
corresponding position for mixing automatically.
The outlet water hardness will be within range of 50-90PPM.
- Raw water hardness inputting range:200-550PPM.

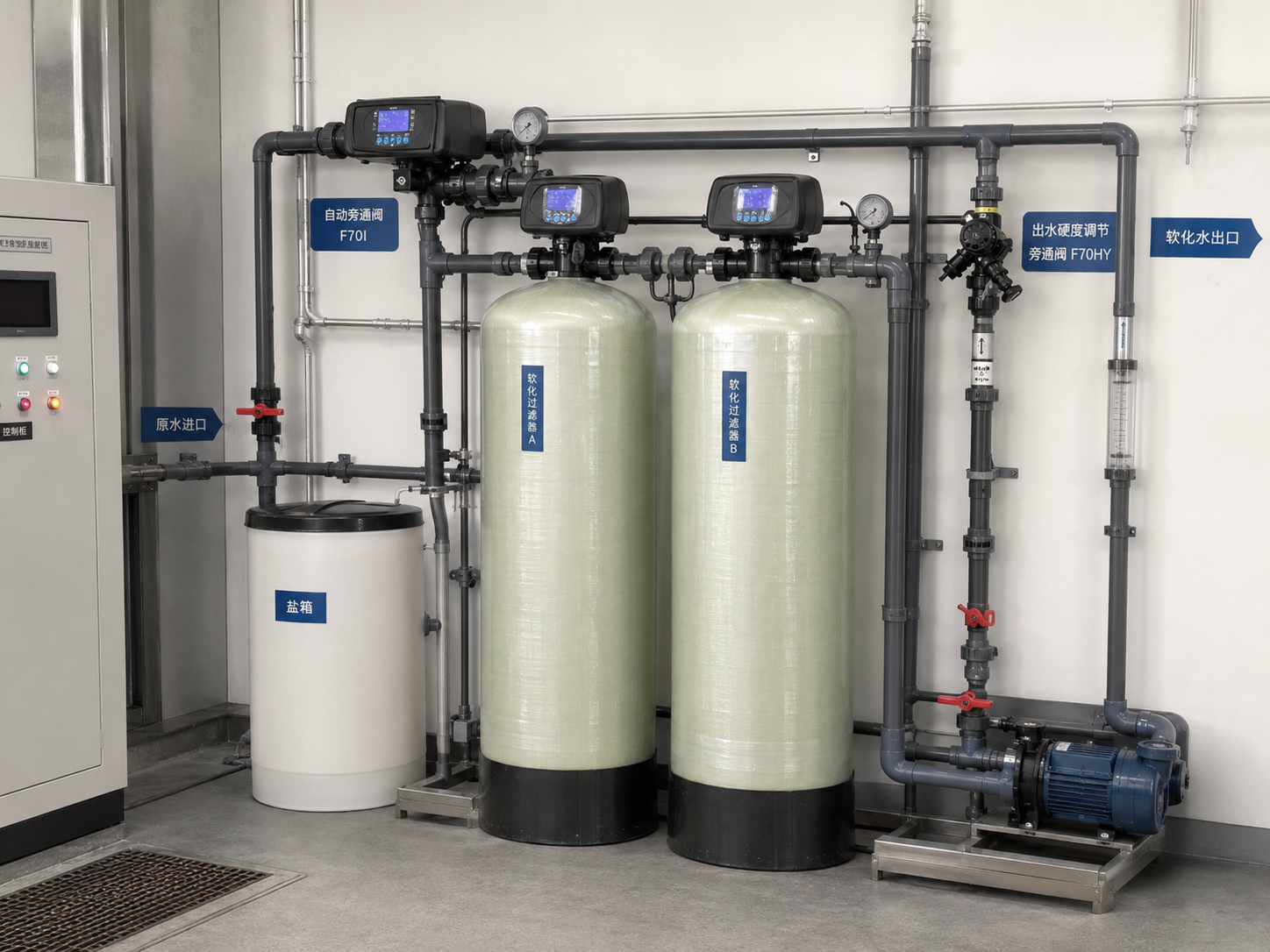

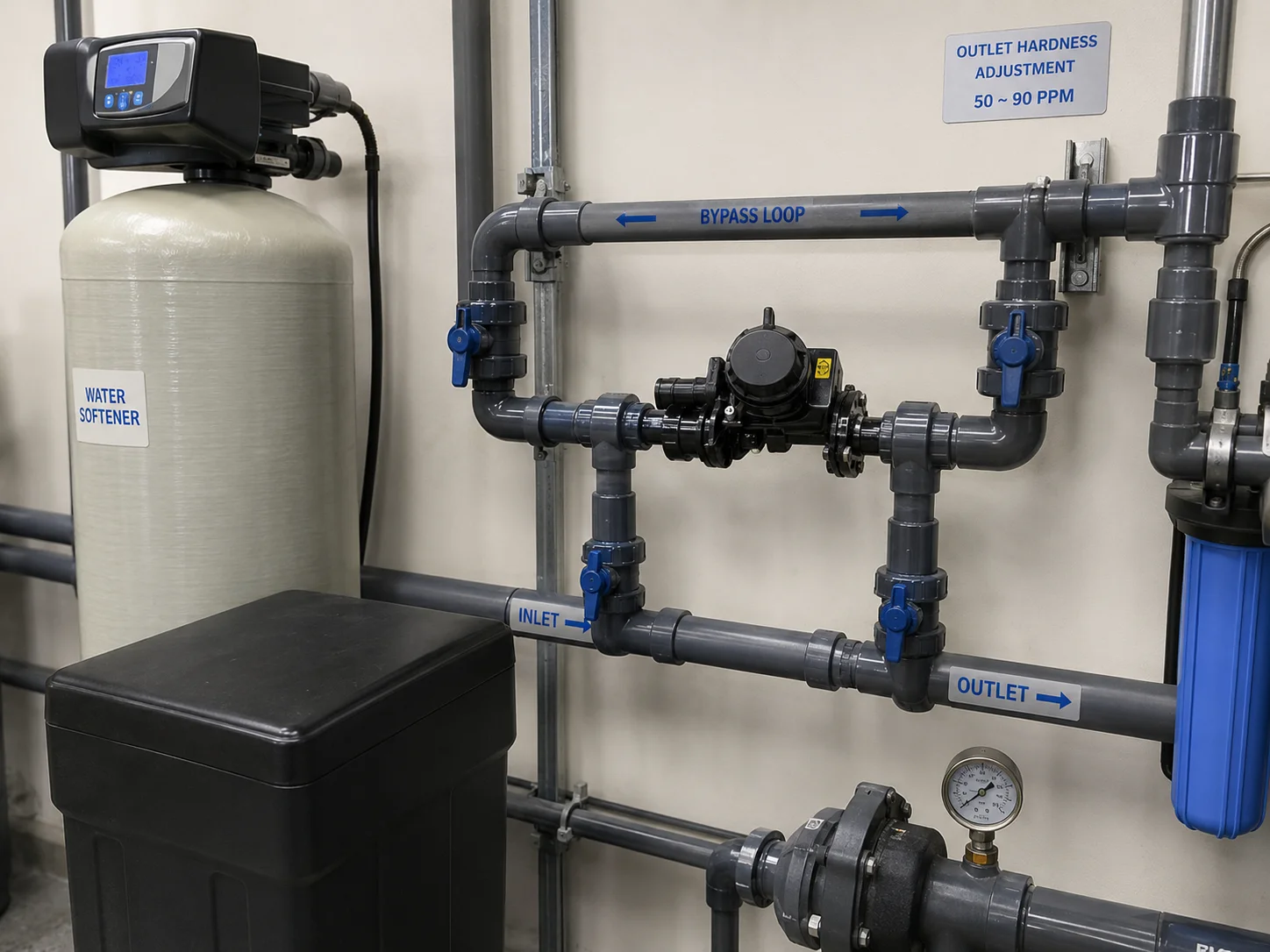

Outlet water hardness adjustable bypass valve F70HY
- Simple structure and reliablesealing;
- It combines withservice,bypass and pat bypass;
- Applicable inlet water hardness range:
150-600ppm,there are five positions for manual selection;
- The hardness of softened outlet canbecontrolled at 50～90ppm;
- Can installed withturbine.
