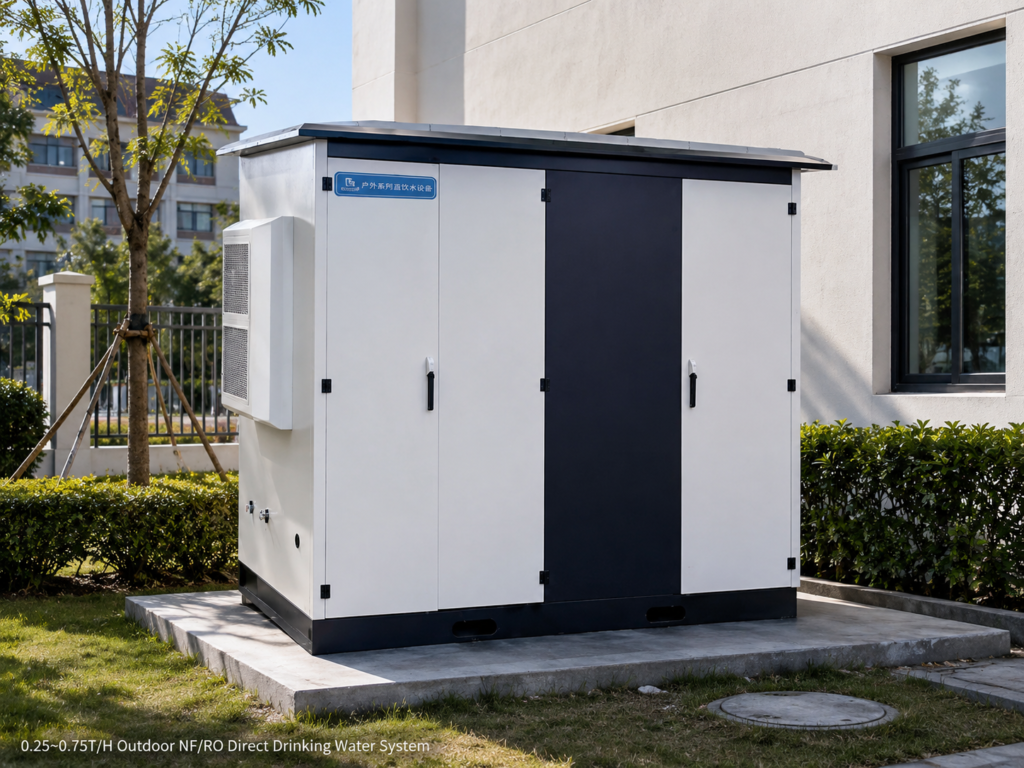

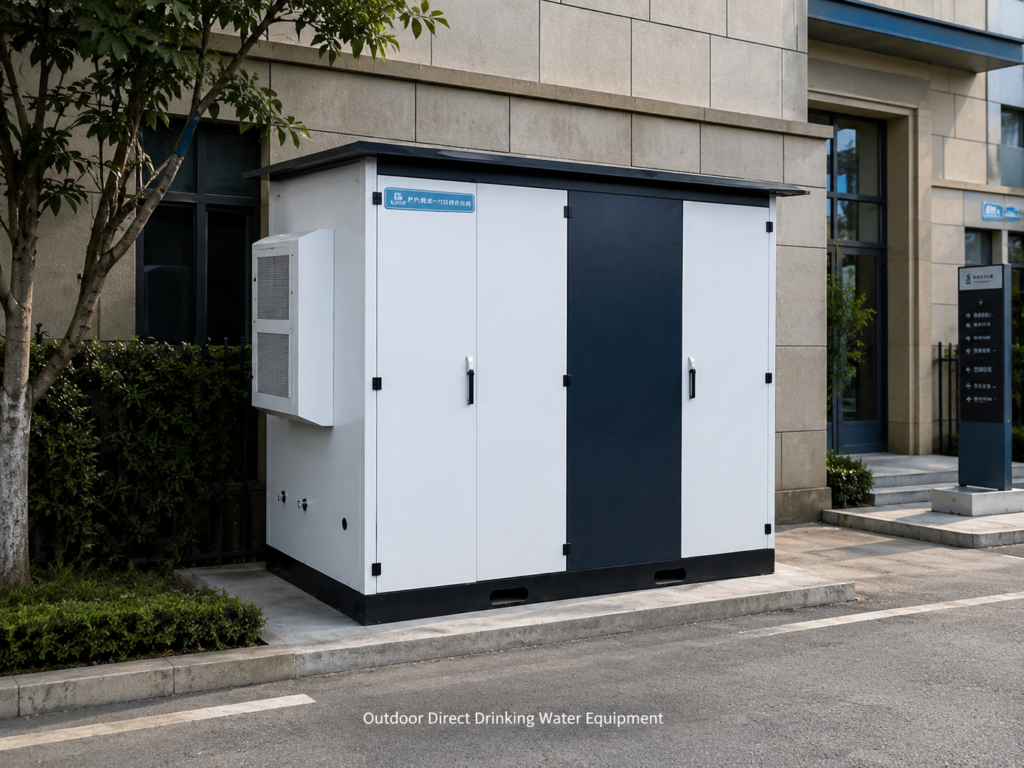

Outdoor Enclosure Water Treatment System

Outdoor Enclosure Water Treatment System

This outdoor enclosure water treatment system packages compatible treatment components in a protected housing, with process capacity and environmental requirements selected for the project.

Standard configuration

Raw water tank: SUS304 sterile Teflon anti-corrosion water tank

Multi-way valve: Runxin Machinery Micro Automatic Computer-Controlled Valve

Filter: SUS304 highly corrosion-resistant mechanical filter

Pump for water supply: 304 horizontal multi-stage centrifugal pump from Nanfang Pump Industry

High-pressure pump: 304 vertical multi-stage centrifugal pump from Southern Pump Industry

Metering pump: Imported SEKO high-precision electromagnetic diaphragm pump

Electric valve: Furlis electric slow opening/slow closing actuator

Manual valve: SUS304 integrated quick-installation valve set

Pure water tank: SUS304 sterile mirror-polished pure water tank

Frequency converter: Three-crystal heavy-load waterproof vector frequency converter

Ultraviolet rays: Supply and return use high-power overcurrent sterilization methods.

Ozone Generator: Air Source Time-Controlled Fully Automatic Ozone Generator

Pipe fittings: SUS304 medical-grade pipe fittings and welding techniques

Membrane element: Time-Watson brand polyamide polymer synthetic material

Comprehensive empowermentThe simulation of the site layout and the available space ensure that the foundation for the direct drinking water pump room and the decoration design can be properly reserved.

Provide a standardized decoration plan for the direct drinking water machine room, as well as the corresponding list of decoration materials;

Provide complete sets of EPC project materials: process flow diagrams, site layout plans, elevation layout diagrams, electrical system diagrams, and software materials;

Developed by the company’s technical team, it possesses completely independent intellectual property rights.

The equipment does not require manual meter reading. There is no need for operators to conduct daily morning and evening equipment maintenance. The various parameters of the equipment mainframe can be monitored in real time through the mobile APP or the PC terminal in the control room.

System fault alarm function: When the operating parameters of the equipment are abnormal, it will send information (signals) to the mobile phone or computer to alert for maintenance. Operators do not need to constantly monitor the mobile phone or computer; the human-machine interface on the local operation panel of the host uses the self-diagnosis function of the programmable controller to determine the cause of the equipment failure, and guides the operators to repair the equipment in the form of text reminders, which is more intelligent and advanced.
Preserve beneficial minerals for the body, produce weakly alkaline water, and make drinking water healthier;
Remove various harmful substances such as harmful heavy metals, pesticide residues, etc. from the water, making the water quality safer; Based on professional technical reserves and rich installation experience, the direct drinking water system units are modularized and decomposed to accelerate the construction progress and improve the overall quality of the system;
Select sanitary-grade pipes and fittings, and adopt one-time welding with double-sided forming welding technology to prevent point corrosion of the pipes;
The equipment uses wastewater recovery devices, with a recovery rate of over 85%, and very little wastewater is discharged, achieving the goal of energy conservation and emission reduction;
Adopt the current internationally advanced UF + NF/RO reverse osmosis three-membrane water treatment technology to retain minerals;
The raw water tank and filter use SUS203 material sterile water tanks with Teflon anti-corrosion technology, greatly extending their service life;
The finished water tank uses SUS304 material sterile water tanks, with a respirator installed on the top to ensure that the air entering and leaving the water tank is purified by the micropore filter, maximizing the cleanliness of the pure water tank;
The equipment signal collection is implemented using 4-20mA output sensors to detect equipment flow, pressure, water temperature, etc. signals;
Innovative district/building pipe network sterilization technology is adopted, achieving fully automatic, no downtime, no residue, and no pollution pipe sterilization.
